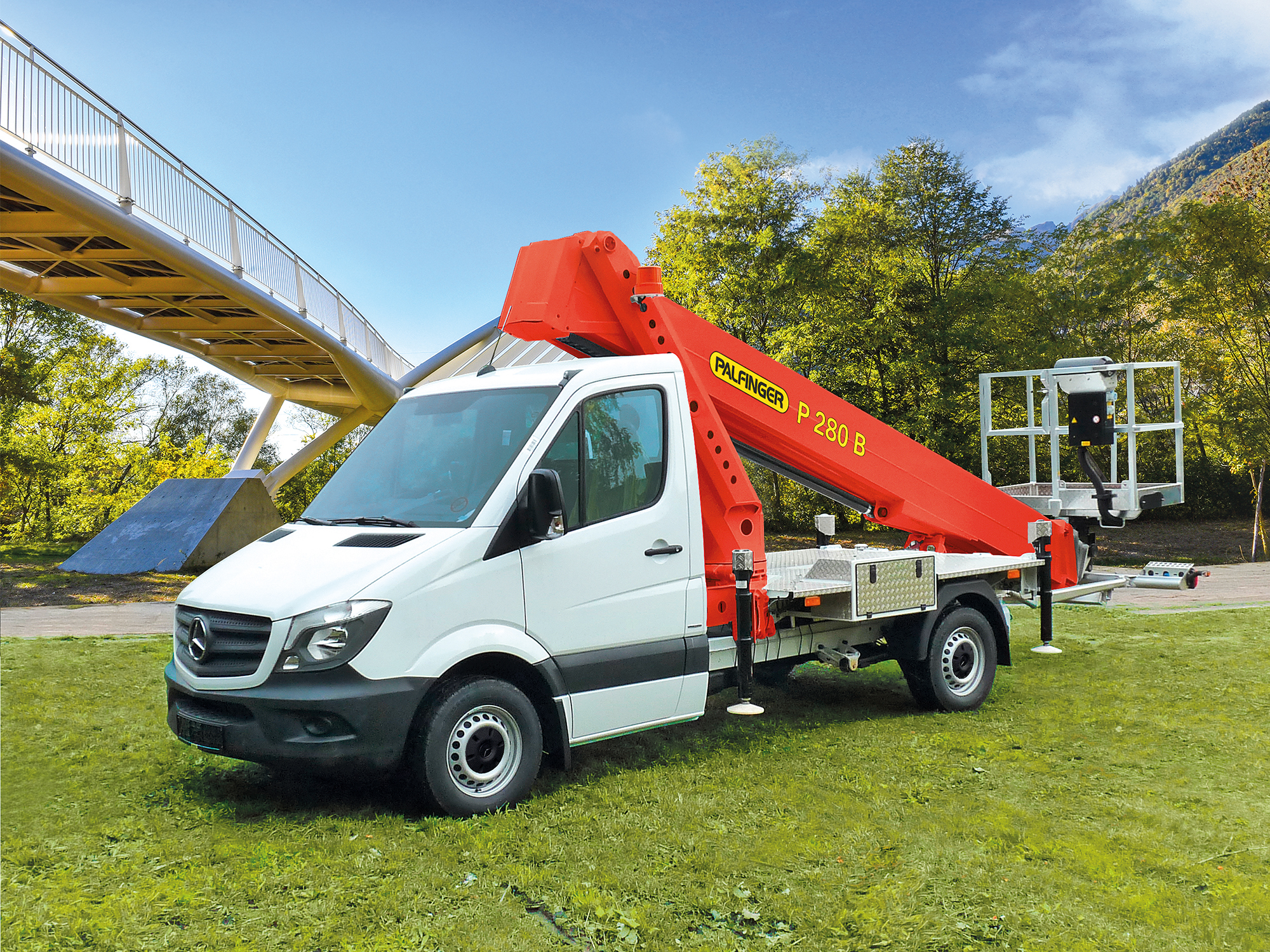

LIGHTWEIGHT FOR MAXIMUM WORKING HEIGHT

The giant among the lightweight PALFINGER access platforms with aluminium telescopic systems has extremely low weight, a good reach and working height and offers outstanding performance and stability.

  • Reach optimisation thanks to monitoring of stabiliser position and set-up angle inclination
  • The working height can be reached even with a full basket load
  • Automatic support stabilising with wheel clearance monitoring
  • Three stabiliser configurations: narrow (in contour), wide (fully extended) and one-sided broad positioning of the stabilisers, as well as automatic release of the associated working range
  • State-of-the-art modular basket control panel
  • Stabiliser operation at the base and in the workman basket

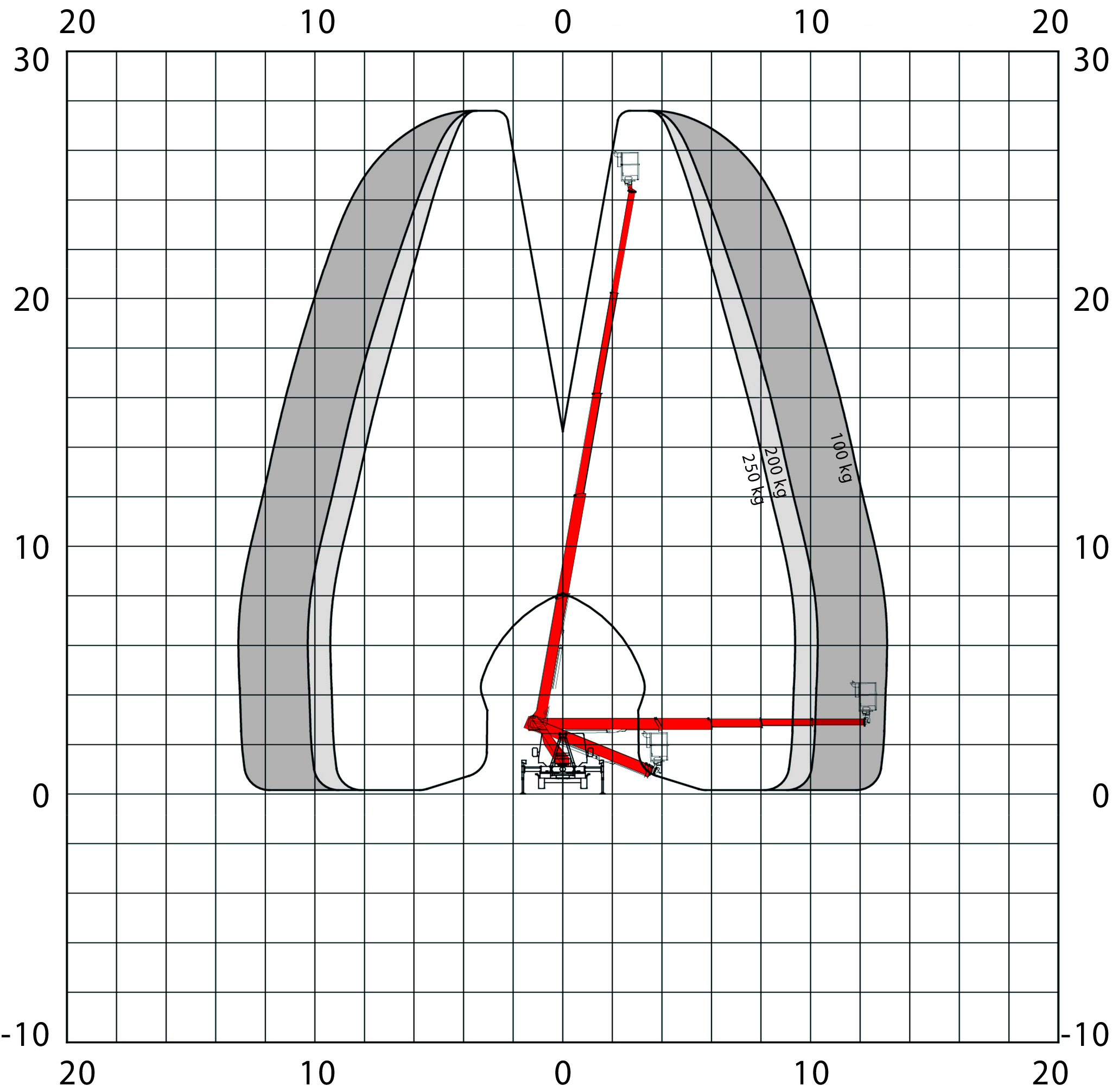

Max. height of work : 27.6  m
Max. basket floor height : 25.6  m

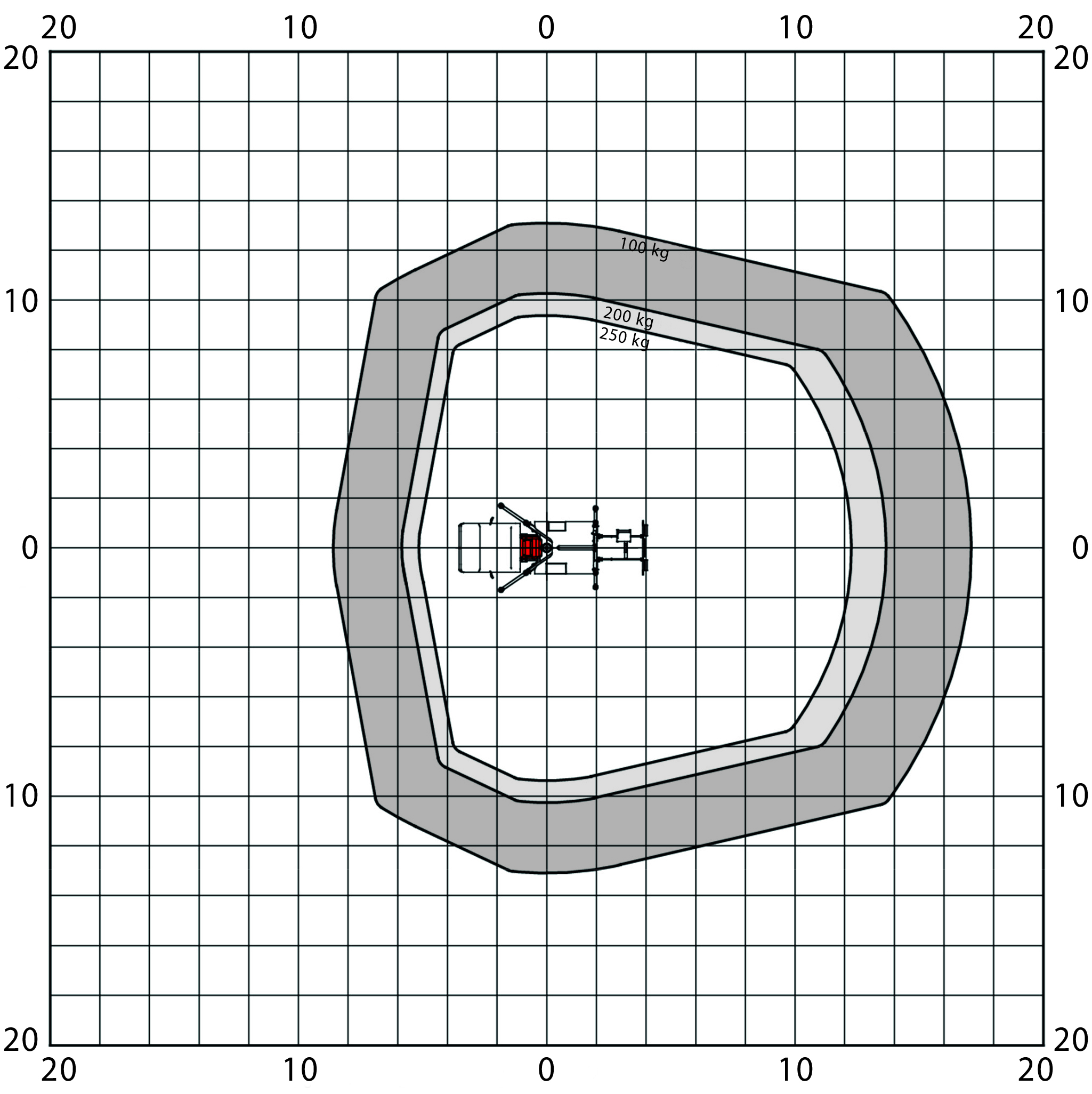

Max. horizontal outreach /with basket load : 17 m
Slewing range of basket : +/- 90°
Max. stabilizer spread : 3.6  m
max. basket load : 250  kg
Workman basket - breadth / length / height : 1.4 x 0.7 x 1.1 m
Rotation angle of turntable : 500°
Maximum stabilisation gradient : 5°

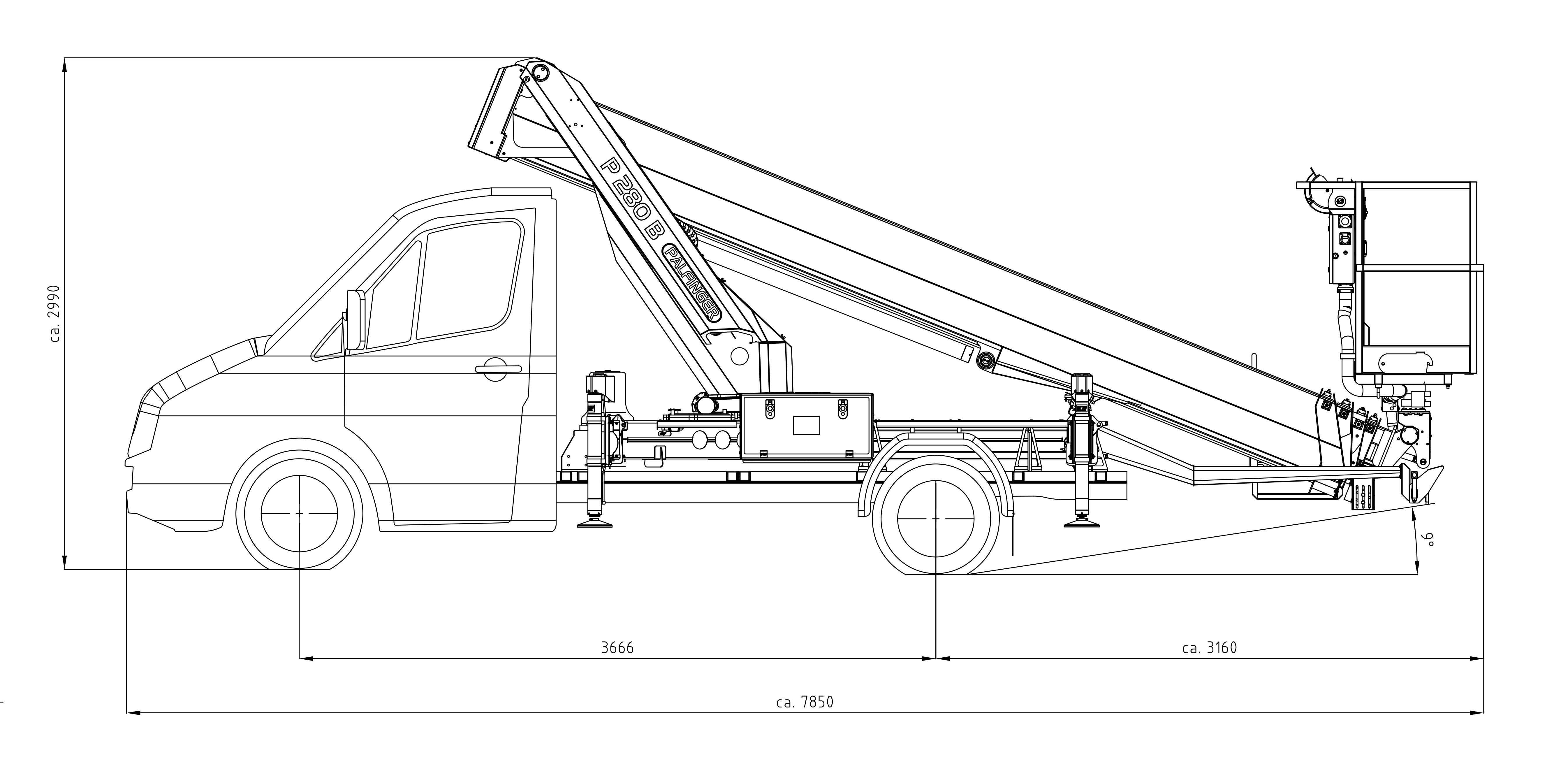

Height in transport position : 2.90  m
Width in transport position : 2.22  m
Overall length : 7.85  m

Available standard chassis:

Mercedes Benz 315 CDI 4x2 BB

Mercedes Benz 317 CDI 4x2 BB

Iveco Daily 35S14

Further chassis on request



*Above mentioned values are standard values and vary depending on options and chassis.

Units shown are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

A possible 2% tolerance is contingent on structural components depending on chassis and equipment.>
