P 170 TXE | DEOM

P 170 TXE- E Smart Plus

Maximum performance offered by lateral outreach and small stabilisation footprint

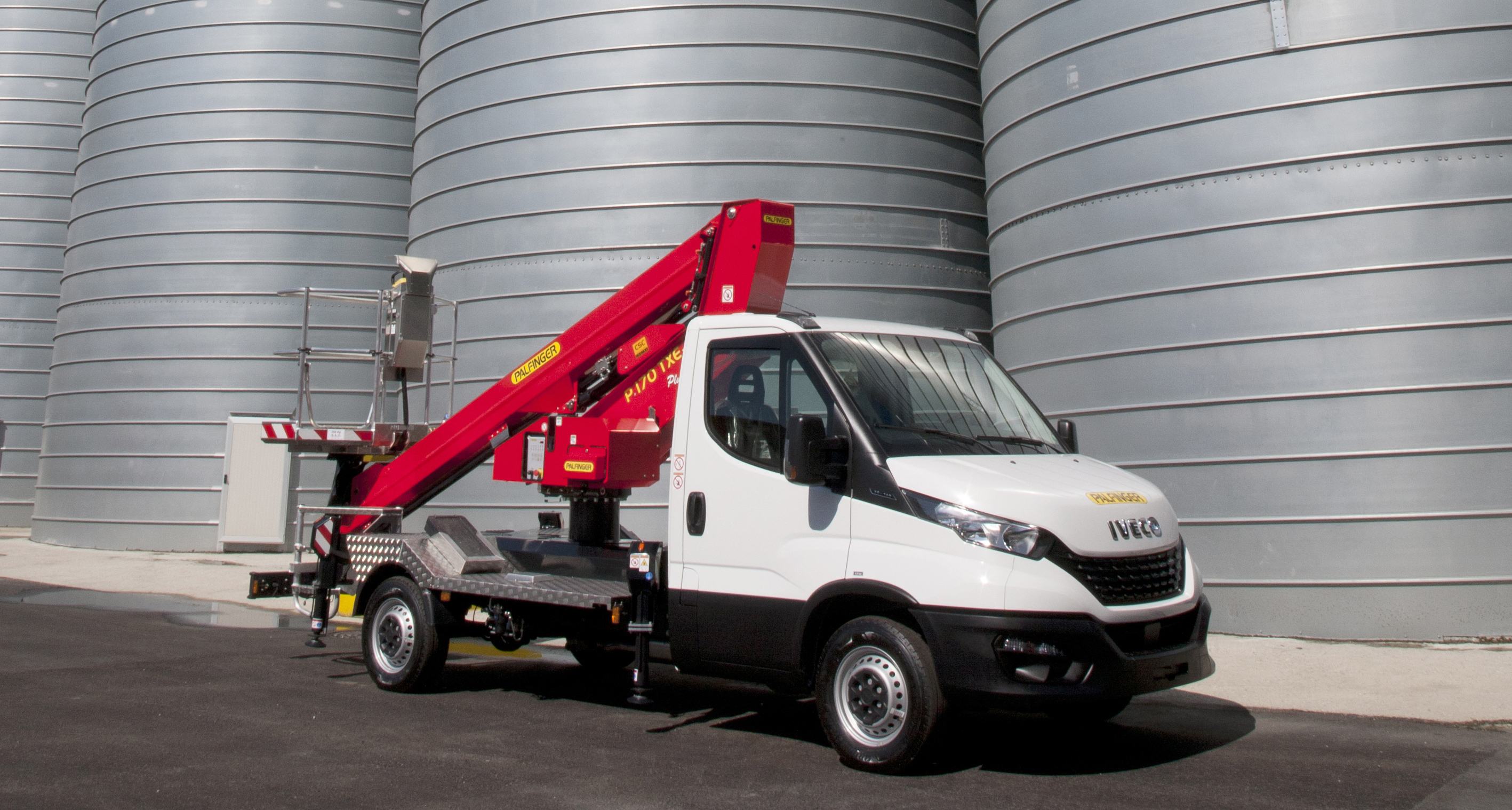

Advanced performance telescopic platform, mounted on a 3.5 tonne truck.
Multifunction electric controls for greater precision, speed, and manoeuvring comfort
Vertical stabilisation with frontwards extending outriggers which compensate for uneven and sloping ground

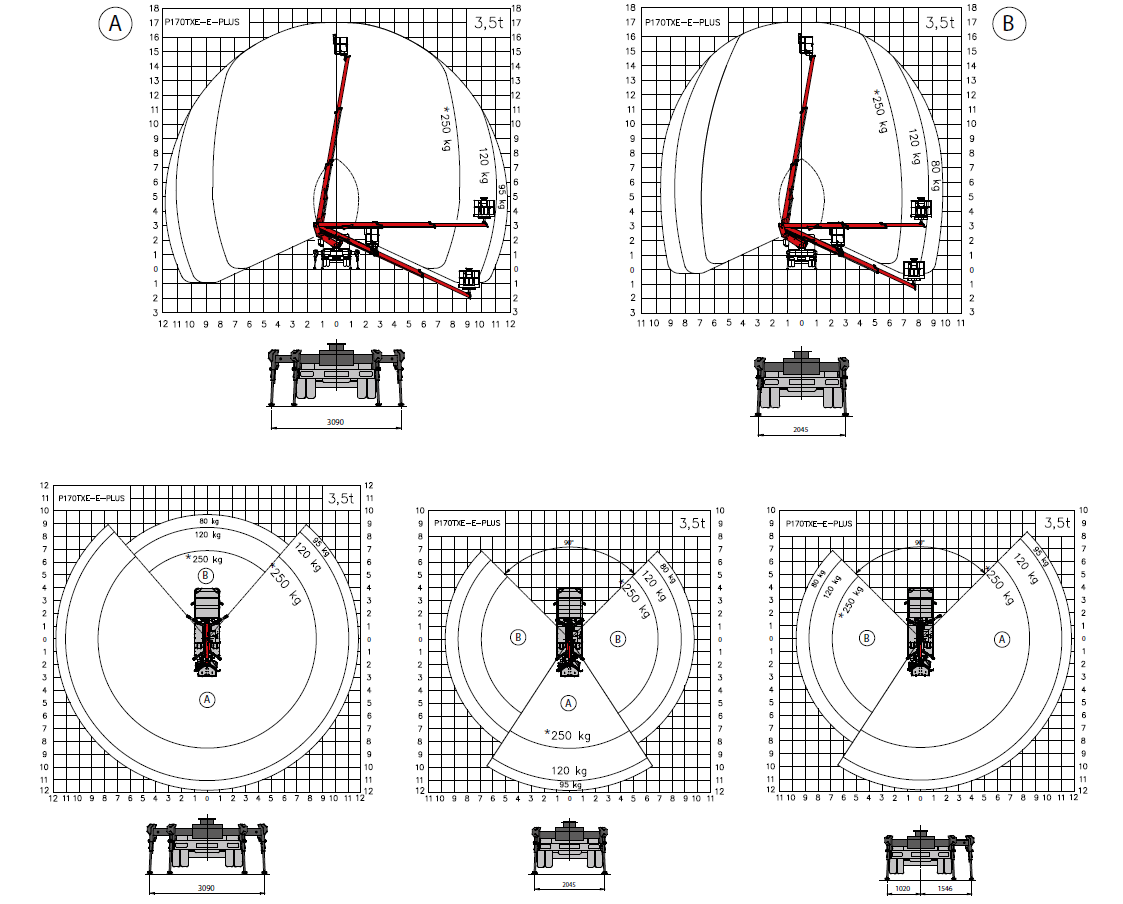

Platform with three stabilisation possibilities for each working condition:

Within the outer vehicle limits: for maximum compactness overall within small spaces
With front outriggers extended: for maximum performance when working in elevated positions
Partial stabilisation: for maximum performance with minimum overall dimensions.

Max. height of work : 16.9 m

Max. basket floor height : 14.9 m

Max. horizontal outreach /with basket load : 11.80 m

Slewing range of basket : 2 x 90°

max. basket load : 250 kg

Workman basket - breadth / length / height : 14 x 085 x 11

Angle of main boom : -25° + 80°

Rotation angle of turntable : 370°

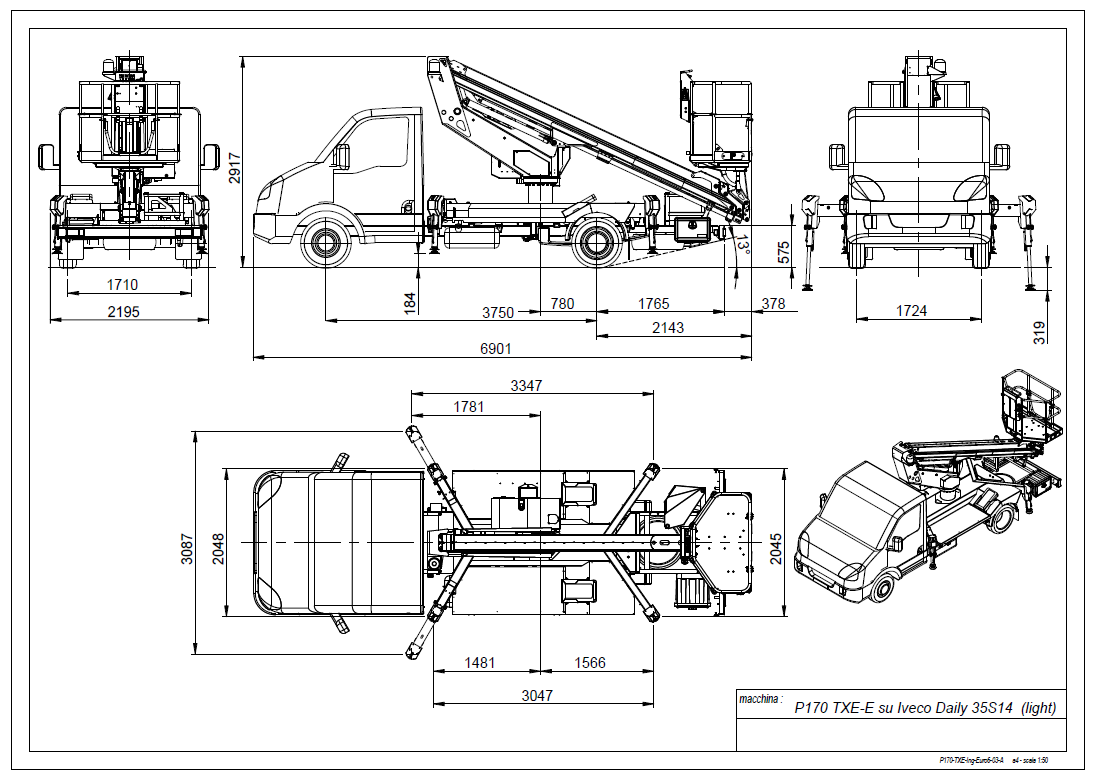

Height in transport position : 2.91 m

Width in transport position : 2.19 m

Length in transport position : 6.9 m

Available standard chassis:

Iveco Daily 35S14

Further chassis on request

*Above mentioned values are standard values and vary depending on options and chassis.

Units shown are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

A possible 2% tolerance is contingent on structural components depending on chassis and equipment.>
