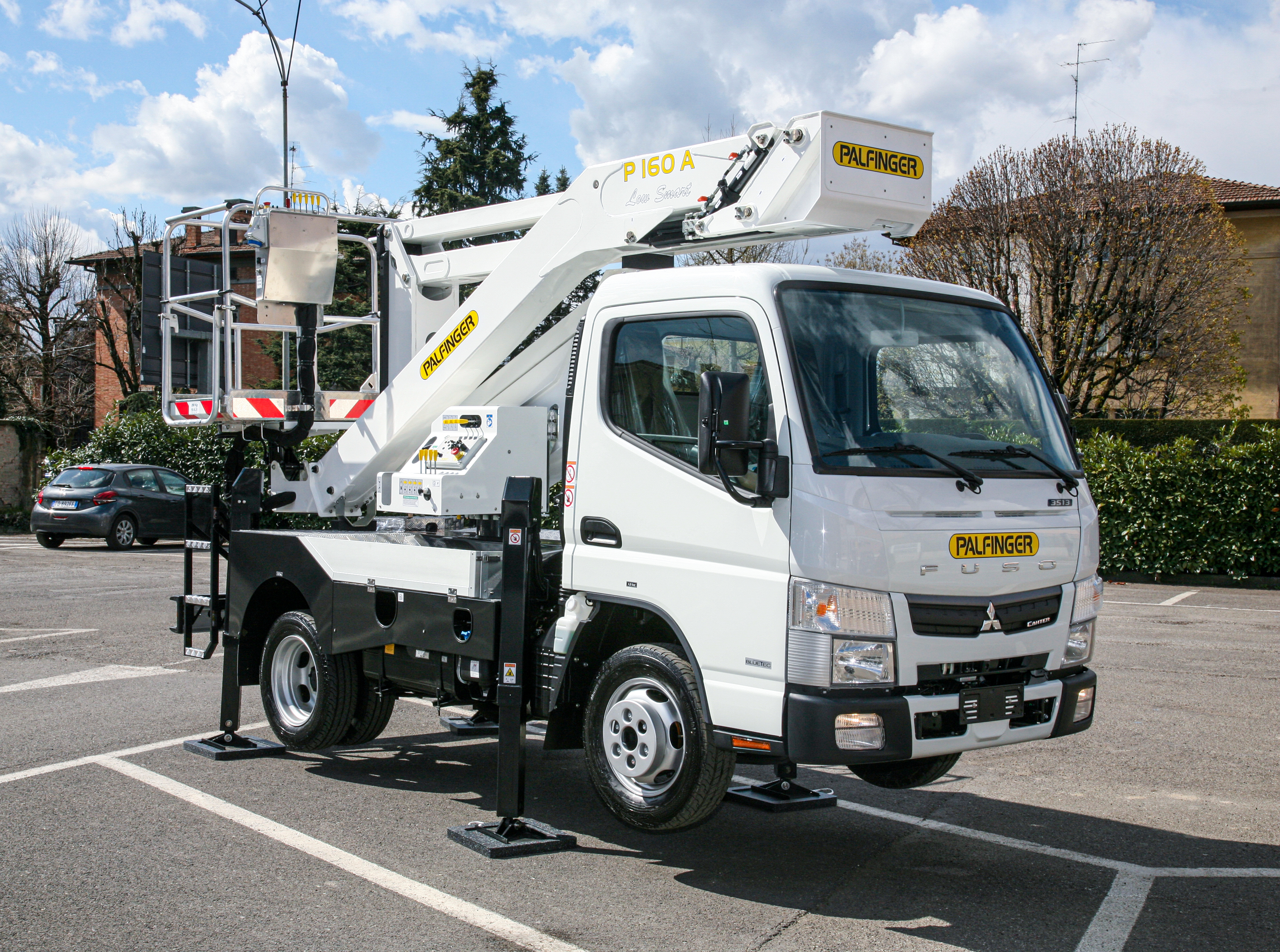

P 160 A

AGILE AND COMPACT, WITH STABILISATION WITHIN VEHICLE LIMITS, PERFECT FOR TOWN CENTRES

• Basket rotation 90° left and 90° right as standard for greater agility
• Ultra-compact installation on short-wheelbase vehicles and stabilisation within truck’s outer limits enable agile operation in
even the most inaccessible urban contexts
• Long stabiliser stroke for optimal compensation of uneven ground

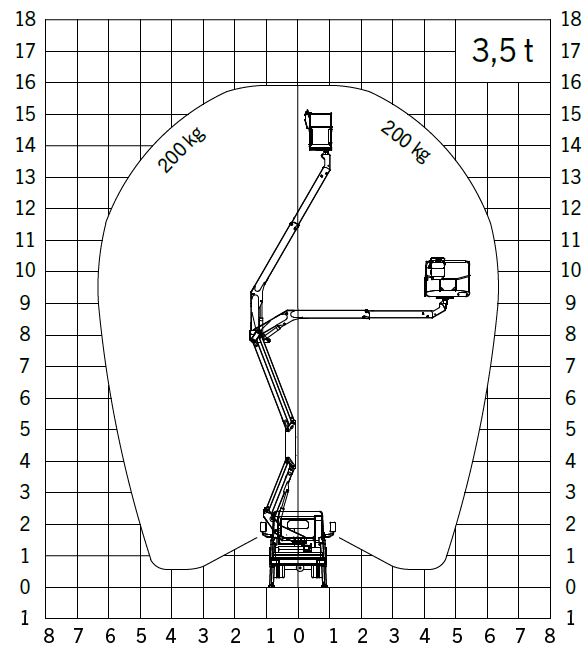

Max. height of work : 16  m
Max. basket floor height : 14  m
Max. horizontal outreach /with basket load : 6,3 m
max. basket load : 200  kg
Workman basket - breadth / length / height : 1,4 x 0,7 x 1,1 m
Angle of main boom : -30° + 60°
Rotation angle of turntable : 260°

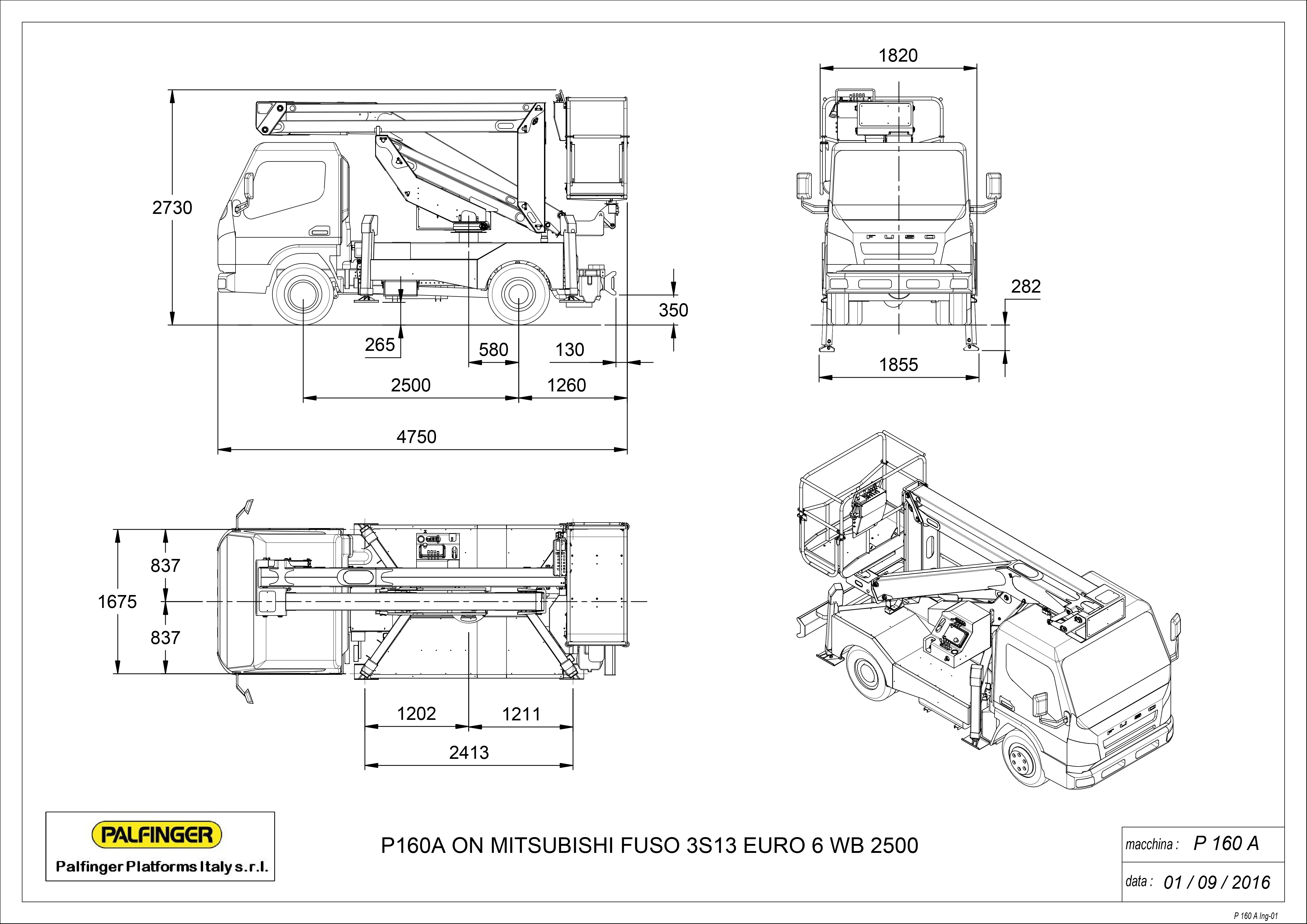

Height in transport position : 2.73  m
Width in transport position : 1.85  m

Available standard chassis:

Fuso Canter 3S13





*Above mentioned values are standard values and vary depending on options and chassis.

Units shown are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

A possible 2% tolerance is contingent on structural components depending on chassis and equipment.>

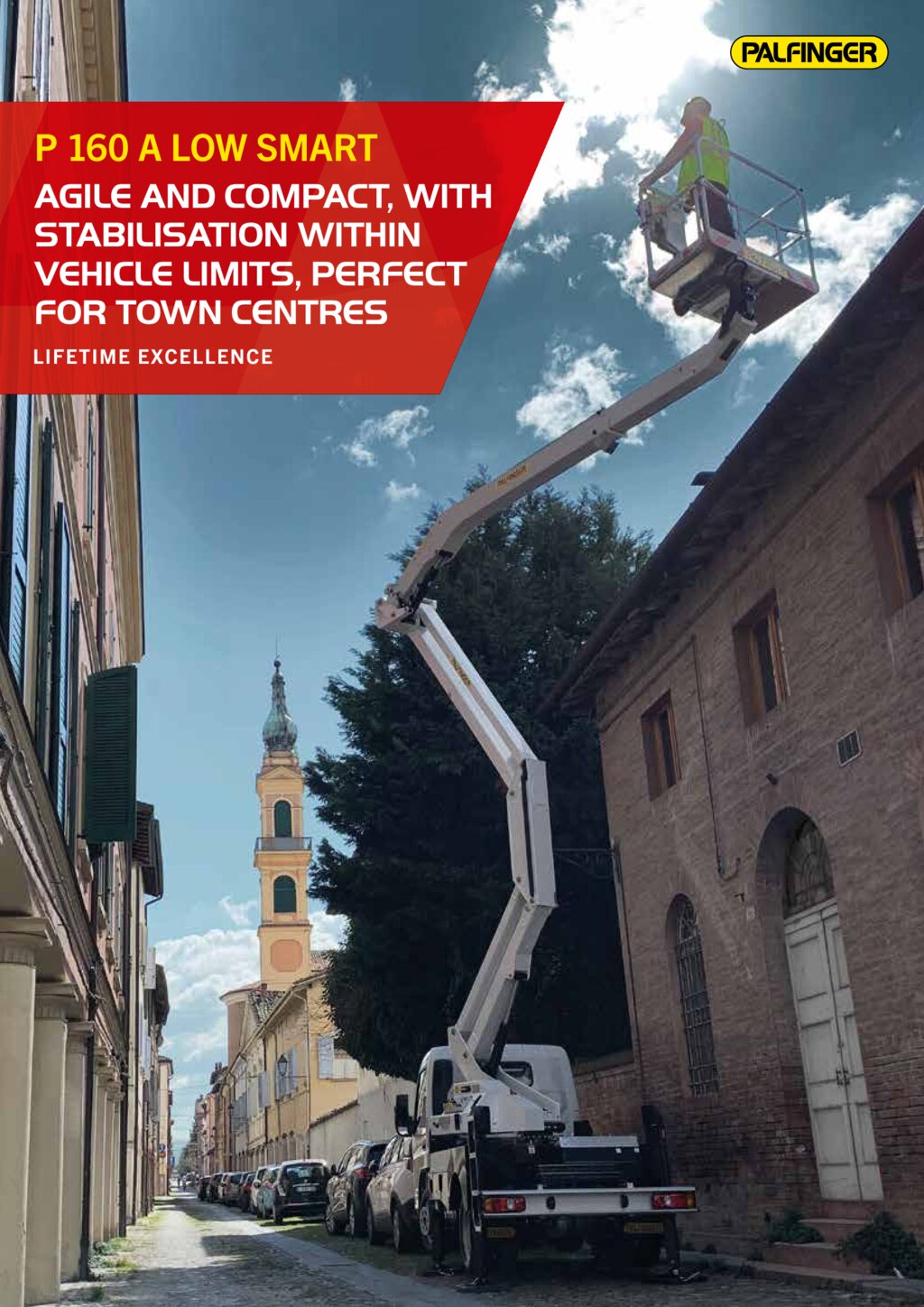

Download brochures & technical specifications
